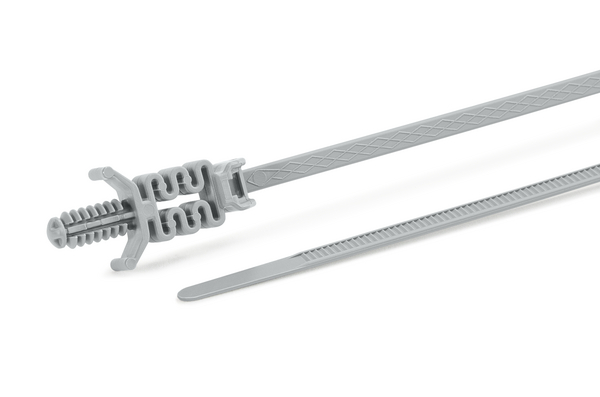

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, grey, 1500pcs.
Art.-No. 126-00412 | T30ROSASVDFT4.7LE-PA46-GY |  Details

Our T30ROS-AS-VDFT4.7LE with AntiSlip engraving and vibration damping.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T30ROSASVDFT4.7LE-PA46-GY
    Pack Cont. 1500pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30ROSASVDFT4.7LE
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 174.0mm
    Length (L2) 19.4mm
    Length (L3) 12.7mm
    Min.Tensile Strength 200N
    Offset Length 19.4mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001505kg
    Width (W) 3.45mm
    for Hole ∅ (FH) 4.5 - 5.0 mm
    for Panel Thickness min - max 0.7 - 8 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026660936
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.44m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01624m³
    Packaging 1 - Weight (kg) 2.301097kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.024388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 141.312kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
