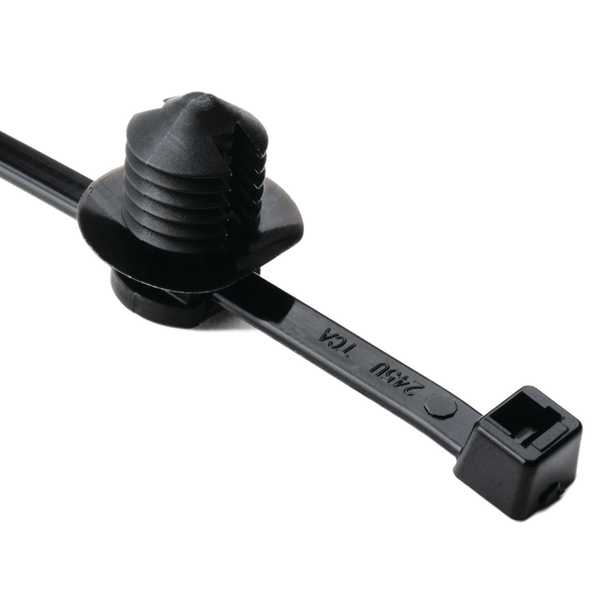

Fixing tie for hole (round), inside serrated, ∅4.0-110.0mm, black, 500pcs.
Art.-No. 156-00093 | T50LFT10-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50LFT10-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT10
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type T50LFT10
    Variant Inside Serrated
    Bundle Diameter max (metric) 110.0mm
    Bundle ∅ 4.0-110.0mm
    Bundle ∅ min. 4.0mm
    Disc ∅ 18.0mm
    Height (H) 1.20mm
    Height (H2) 12.70mm
    Length (L) 380.0mm
    Length (L2) 12.0mm
    Length (L3) 18.6mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.8 - 5.0mm
    Width (W) 4.7mm
    Width (W2) 11.6mm
    Width (W3) 5.0mm
    for Hole ∅ (FH) 9.7 - 10.0 mm
    for Panel Thickness min - max 0.8 - 5 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026422589
    Packaging 3 - Weight (kg) 7.44kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
