25/12/2024

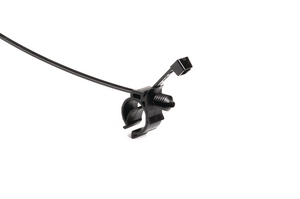

Fixing tie with pipe/tube holder/for hole (round), ∅1.5-50.0mm, black, 2000pcs.
Art.-No. 156-01245 | T50RCTCFT6-PA66HS/PA66HIRHS-BK |  Details

T50RCTC8FT6.

    • For post-installation of additional cables for pre-assembled cable looms
    • Variety of twist angles and even different loop directions provide flexibility for cable routing
    • For OC1 and 2A additional cable tie dimensions are available
    • CBTO-series for cable ties up to 5 mm
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RCTCFT6-PA66HS/PA66HIRHS-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50RCTCFT6
    Attach to Diameter 0.43 - 0.59 "
    Attach to Ø 11.0 - 15.0
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Min.Tensile Strength 222N
    for Hole ∅ (FH) 6.5 mm
    for Panel Thickness min - max 0.7 - 4.5 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026485584
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
