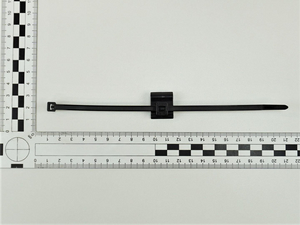

Fixing tie for edge, inside serrated, ∅4.0-40.0mm, black, 500pcs.
Art.-No. 150-45292 | T50REC2.5B-PA66HS/PA66HIRHS-BK |  Details

The holding tab increases the tensile strength additionaly.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Easy to assemble by hand
    • Cable tie head can be moved after bundling
    • For edges of 1.0 - 3.0 mm
    • Secure fixing of the EdgeClip into drill hole
    • Ideal for use wherever space is at its premium
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application Due to the tie's reduced installation height it is ideal for use wherever space is at a premium.
    Anti rotation (Yes / No) YES
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element.
    Fixation Method Edge Clips without metal insert
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    No. of sides for tie attachment 4
    PART DESCRIPTION T50REC2.5B-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.

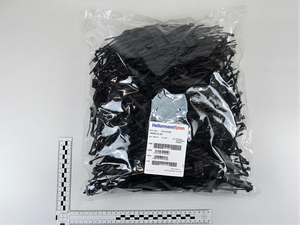

    Package Content packed in bag
    Product Family T50REC2.5B for routing horizontal to an edge
    Product Group 2-Piece Fixing Ties for Edges, for Holes
    Type T50REC2.5B
    Variant Inside Serrated
    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ 4.0-40.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm
    Height (H2) 22.8mm
    Length (L) 202mm
    Length (L2) 19.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 2.1 - 2.9mm
    Weight/Unit 0.0032kg
    Width (W) 4.6mm
    Width (W2) 11.7mm
    for Panel Thickness min - max 1 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026220246
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.629135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.59481kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 148.128kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
