Fixing tie for edge, inside serrated, ∅5.0-50.0mm, black, 500pcs.
Art.-No. 156-02225 | T50REC5B-PA66HIRHSUVR5/PA66HIRHSUV-BK | Details

Cable tie with edge clip eliminates the need for drilling mounting holes, simplifying installation.

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 – 3 mm

Package size

100 pcs.

500 pcs.

Add to watchlist

Downloads CAD-Download Datasheet

More products in this product group:

2-piece fixing ties for edges >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Cable Tie	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	Edge Clip
Foot Part	Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5)
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50REC5B-PA66HIRHSUVR5/PA66HIRHSUV-BK
Pack Cont.	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Type	T50REC5B
Variant	Inside Serrated

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Bundle ∅	5.0-50.0mm
Bundle ∅ min.	5.0mm
Height (H)	1.2mm
Height (H2)	15.5mm

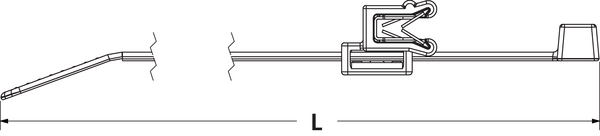

Length (L)	202.0mm
Length (L2)	14.0mm
Mechanical Strength	89N
Min.Tensile Strength	225N
Panel Thickness max.	1.0 - 3.0mm
Thickness (T)	1.2mm
Weight/Unit	0.0029kg
Width (W)	4.6mm
Width (W2)	12.0mm
for Panel Thickness min - max	1 - 3 mm
for Panel Thickness min - max	0 - 0.1 "

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +115 °C, -40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	Yes
UL Listed (US and Canada)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UL Type	21
UL-File Number	E64139
UV-Stabilised	Yes

Logistics and Packaging


Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026593593
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	1.450001kg

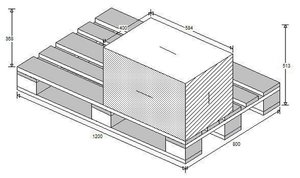

Packaging 3 - Height (m)	0.33972499999999997m
Packaging 3 - Length (m)	0.5699125m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0738m³
Packaging 3 - Weight (kg)	12.420008kg
Packaging 3 - Width (m)	0.381m

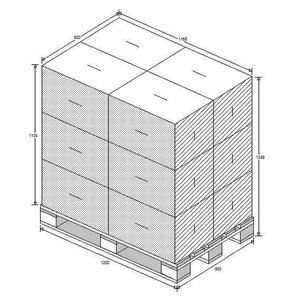

Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	170.04kg
Packaging 4 - Width (m)	0.8m
