04/11/2024

Fixing tie for hole (round), ∅2.0-50.0mm, black, 500pcs.
Art.-No. 157-00329 | T50ROSBHMBSO18-PA66HS-BK |  Details

Polyamide 6.6 heat stabilized (PA66HS)

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)

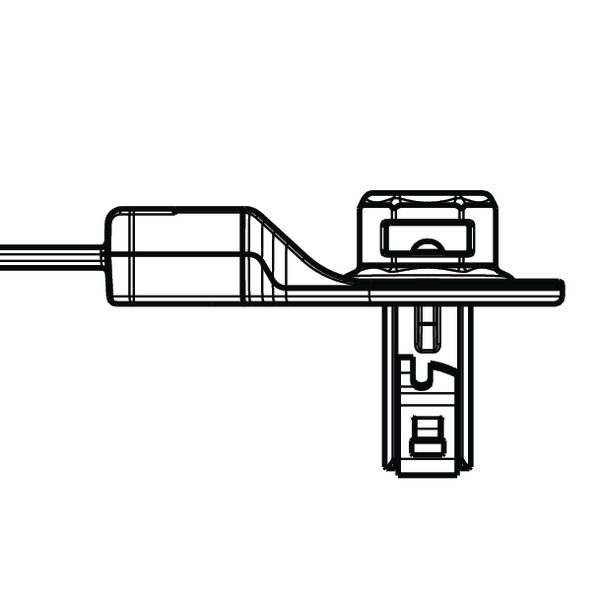

    Description Blind Hole Mount Offset Cable Ties secure bundles beside the mounting hole instead of directly above it. The unique design includes a heat stabilized cable tie and formula-matched, hex-head fastener that features a low insertion force and aggressively resists pull off. Performs equally well in threaded or non-threaded blind holes. Since cable or wire bundle is beside the fastener, the assembly can be removed using a hex driver from the mounting hole without cutting the cable tie. The fastener can then be reused.
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50ROSBHMBSO18-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Type T50ROSBHMBSO18
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm

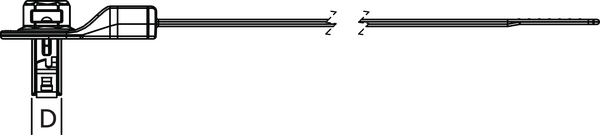

    Diameter (D) 6.35mm
    Height (H) 18.7mm
    Height (H2) 12.4mm
    Hole Depth 12.7mm

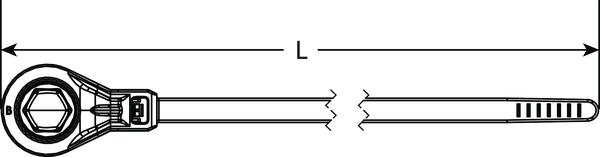

    Length (L) 203.2mm
    Length (L2) 200.0mm
    Min.Tensile Strength 225N
    Offset Length 18.0mm
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.25 - 6.45 mm
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026589084
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
