22/11/2024

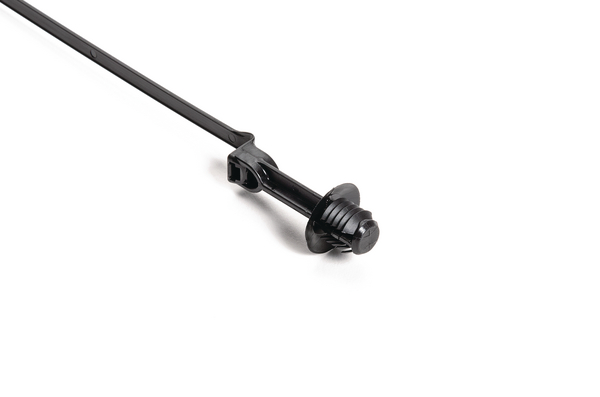

Fixing tie for hole (round), ∅2.0-50.0mm, black, 3000Carton
Art.-No. 157-00358 | T50ROSFT1025SO-PA66HIRHSUV-BK |  Details

T50ROSFT6S25SO and T50ROSFT612.5SO.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFT1025SO-PA66HIRHSUV-BK
    Pack Cont. 3000Carton
    Package Content packed in carton
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFT1025SO
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 242.3mm
    Length (L2) 25.0mm
    Min.Tensile Strength 225N
    Offset Length 25.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.002843kg
    Width (W) 11.3mm
    for Hole ∅ (FH) 9.6 - 10.4 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026702209
    Packaging 1 - Height (m) 0.35m
    Packaging 1 - Length (m) 0.57m
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05786m³
    Packaging 1 - Weight (kg) 8.529001kg
    Packaging 1 - Width (m) 0.29m
    Packaging 3 - Height (m) 0.37668199999999996m
    Packaging 3 - Length (m) 0.5902959999999999m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0635m³
    Packaging 3 - Weight (kg) 9.346001kg
    Packaging 3 - Width (m) 0.285496m
    Packaging 4 - Height (m) 1.275m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.224m³
    Packaging 4 - Weight (kg) 133.152kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
