04/11/2024

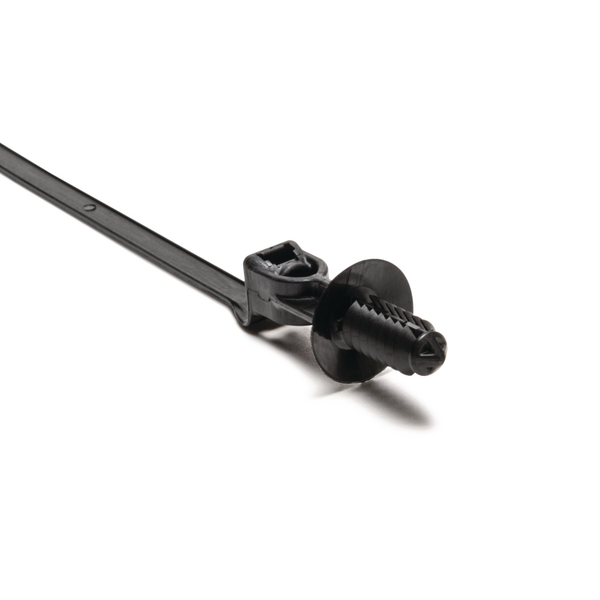

Fixing tie for hole (round), ∅2.0-50.0mm, brown, 3000Bag
Art.-No. 157-02517 | T50ROSFT612.5SO-PA46-BN |  Details

T50ROSFT6S25SO and T50ROSFT612.5SO.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Brown (BN)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50ROSFT612.5SO-PA46-BN
    Pack Cont. 3000Bag
    Package Content packed in bag
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFT612.5SO
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 16.6mm
    Length (L) 234.2mm
    Length (L2) 12.5mm
    Min.Tensile Strength 225N
    Offset Length 12.5mm
    Thickness (T) 1.5mm
    Weight/Unit 0.0014kg
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702278
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.400001kg
    Packaging 3 - Height (m) 0.3730625m
    Packaging 3 - Length (m) 0.587375m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.063m³
    Packaging 3 - Weight (kg) 5.020003kg
    Packaging 3 - Width (m) 0.2873375m
    Packaging 4 - Height (m) 1.263m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.212m³
    Packaging 4 - Weight (kg) 81.24kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
