10/01/2025

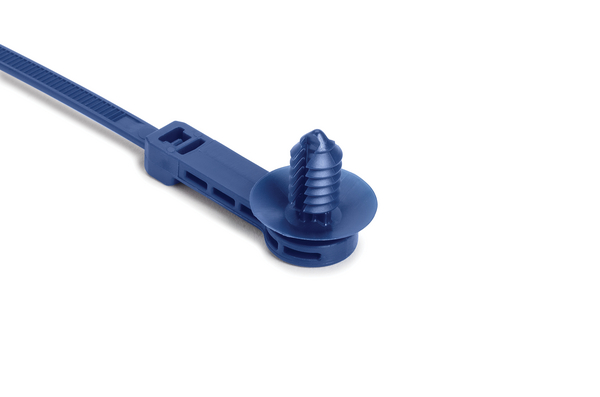

Fixing tie for hole (round), ∅2.0-50.0mm, blue, 500pcs.
Art.-No. 157-04098 | T50ROSFT6SO25A-PA66HHS-BU |  Details

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Dark Blue (DKBU)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, high heat stabilised (PA66HHS)
    PART DESCRIPTION T50ROSFT6SO25A-PA66HHS-BU
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFT6SO25A
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 19.0mm
    Fixing Hole Shape Circular
    Height (H) 21.2mm
    Length (L) 230.0mm
    Length (L2) 25.0mm
    Min.Tensile Strength 225N
    Offset Length 25.0mm
    Panel Thickness max. 0.60 - 6.65mm
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.1 - 7.0 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 6.7 mm
    for Panel Thickness min - max 0 - 0.3 "
    Flammability UL 94 V2
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026699523
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.375m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0647m³
    Packaging 3 - Weight (kg) 10.14kg
    Packaging 3 - Width (m) 0.292m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
