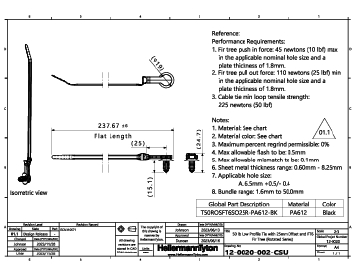

Fixing tie for hole (round), outside serrated, ∅1.6-50.0mm, black, 500pcs.
Art.-No. 157-04135 | T50ROSFT6SO25R-PA612-BK Details

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 612 (PA612)
PART DESCRIPTION T50ROSFT6SO25R-PA612-BK
Pack Cont. 500pcs.
Package Content packed in bag
Product Family With offset 12.5 and 25.0 mm
Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
Type T50ROSFT6SO25R
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 1.6-50.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 19.0mm
Height (H) 15.1mm
Length (L) 237.7mm
Length (L2) 25.0mm
Min.Tensile Strength 225N
Offset Length 25.0mm
Panel Thickness max. 0.6 - 8.25mm
Width (W) 5.1mm
for Hole ∅ (FH) 6.1 - 7.0 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max 0.6 - 8.3 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
Halogen-free Yes
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
Country of Origin US
GTIN-13 / EAN 4031026734248
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 1.2kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Qty 72000
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
