22/11/2024

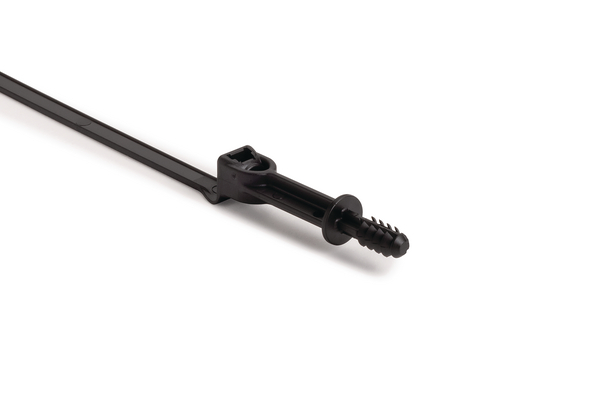

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 2000pcs.
Art.-No. 157-00488 | T50ROSFTM625SO-PA66HIRHSUV-BK |  Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTM625SO-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.

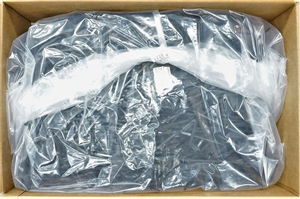

    Package Content packed in carton
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFTM625SO
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 5.8mm
    Length (L) 244.0mm
    Length (L2) 25.0mm
    Min.Tensile Strength 225N
    Offset Length 25.0mm
    Panel Thickness max. 5.0mm
    Thickness (T) 1.52mm
    Weight/Unit 0.002453kg
    Width (W) 5.05mm
    for Hole ∅ (FH) M6 x 1
    for Panel Thickness min - max 5 - 5 mm
    for Panel Thickness min - max 0.2 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026637983
    Packaging 1 - Height (m) 0.19m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04469m³
    Packaging 1 - Weight (kg) 4.906001kg
    Packaging 1 - Width (m) 0.392m
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 5.676001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 106.14kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
