14/11/2024

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 3000pcs.
Art.-No. 157-00523 | T50ROSFTOVAL25A-PA66HIRHSUV-BK |  Details

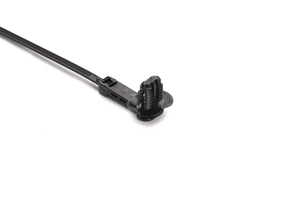

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTOVAL25A-PA66HIRHSUV-BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Product Family with offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
    Releasable Closure (Yes/No) No
    Type T50ROSFTOVAL25A
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 17.63 x 23.63mm
    Fixing Hole Shape Oval
    Height (H) 13.15mm
    Length (L) 229.3mm
    Length (L2) 25.0mm
    Min.Tensile Strength 222.4N
    Offset Length 25.0mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.0035kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026657776
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 10.500001kg
    Packaging 3 - Height (m) 0.3730625m
    Packaging 3 - Length (m) 0.587375m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.063m³
    Packaging 3 - Weight (kg) 11.320001kg
    Packaging 3 - Width (m) 0.2873375m
    Packaging 4 - Height (m) 1.263m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.212m³
    Packaging 4 - Weight (kg) 156.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
