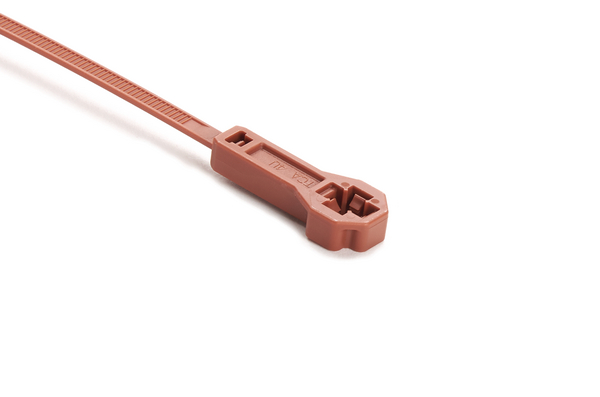

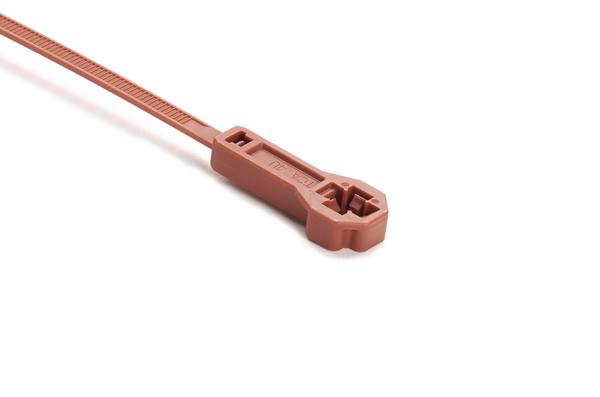

Fixing tie for stud, ∅2.0-50.0mm, brown, 3000pcs.
Art.-No. 157-00338 | T50ROSLPM6SMSO25-PA46-BN |  Details

Offset design positions bundles away from obstructions, heat or sources of abrasion.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Brown (BN)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50ROSLPM6SMSO25-PA46-BN
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Product Group 1-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSLPM6SMSO25
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 6.30mm
    Length (L) 223.52mm
    Min.Tensile Strength 225N
    Offset Length 25.5mm
    Stud ∅ 0.20 ", 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Weight/Unit 0.00242kg
    Width (W) 14.2mm
    for Hole ∅ (FH) M6 x 1
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026702094
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 7.260001kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 8.080001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 117.96kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
