22/12/2024

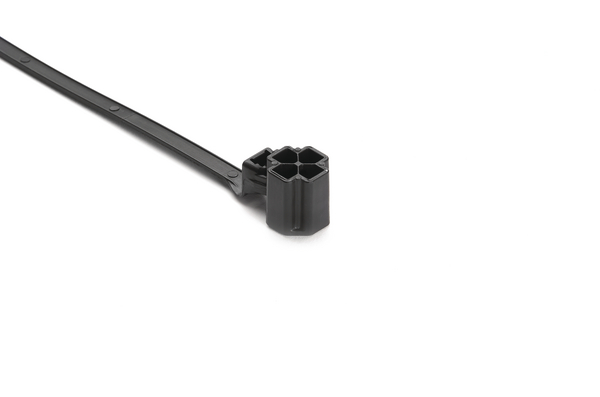

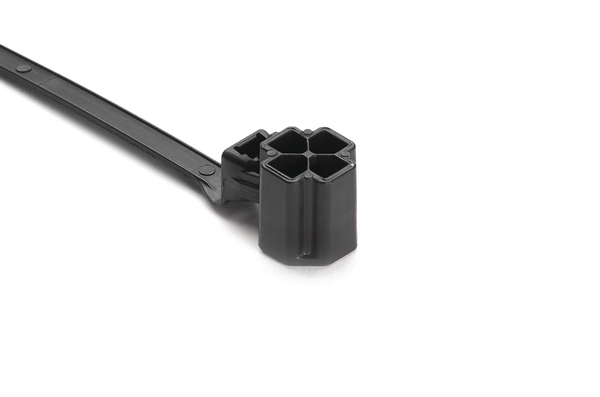

Fixing tie for stud, ∅2.0-50.0mm, black, 100pcs.
Art.-No. 157-00418 | T50ROSSB5-6U-PA66HIRHSUV-BK |  Details

Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSSB5-6U-PA66HIRHSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSSB5-6U
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.5mm
    Height (H2) 15.0mm
    Length (L) 218.5mm
    Min.Tensile Strength 225N
    Stud ∅ M5;M6"
    Stud ∅ M5, M6
    Width (W) 5.1mm
    Width (W2) 14.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026726021
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
