20/12/2024

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-01221 | T50ROSSFT6.5ZD16-2-PA66HS/PA66HIRHS-BK |  Details

The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    Show more
    Add to watchlist

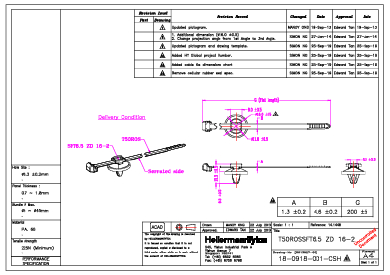

    Downloads Datasheet
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features sealed
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSSFT6.5ZD16-2-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family for round holes, sealed
    Product Group 2-Pieces Fixing Ties with Arrowhead, with Disc, sealed
    Tie Closure plastic pawl
    Type T50ROSSFT6.5ZD16-2
    Variant Outside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Disc ∅ 16.0mm
    Height (H) 1.3mm
    Height (H2) 00mm
    Length (L) 200.0mm
    Length (L2) 00mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Width (W2) 00mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 1.8 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026480275
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
