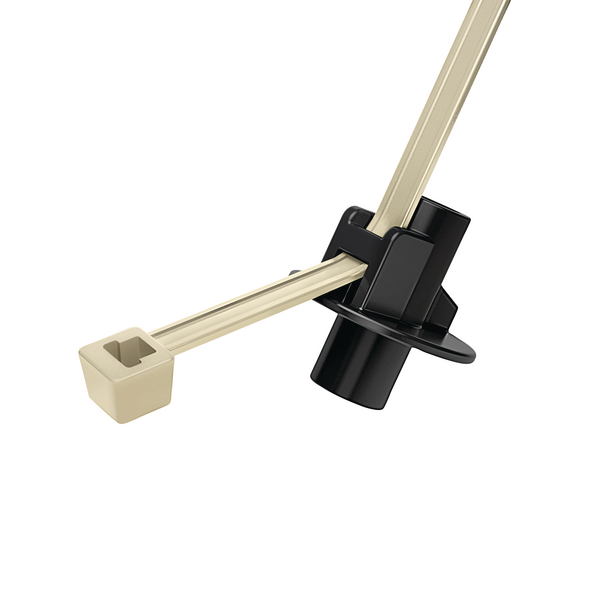

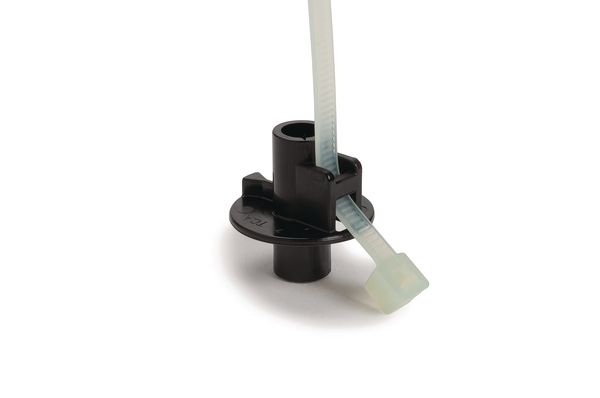

Fixing tie for stud, inside serrated, ∅45.0mm, black, 500pcs.
Art.-No. 156-00691 | T50RSBH5-10-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RSBH5-10-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs, with Plate (for isolation material)
    Tie Closure plastic pawl
    Type T50RSBH5-10
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    Disc ∅ 25.0mm
    Height (H2) 26.0mm
    Length (L) 200.0mm
    Stud ∅ 5.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 28.0mm
    Width (W3) 10.0mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026426303
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
