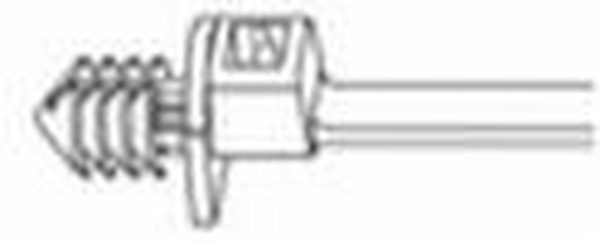

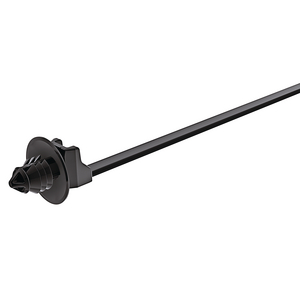

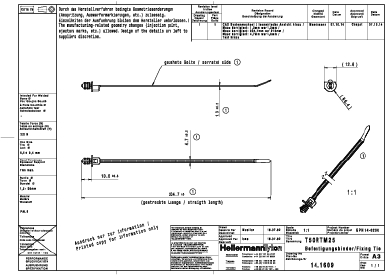

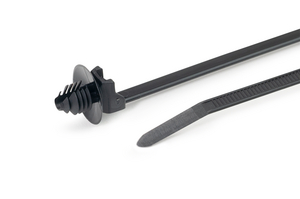

Fixing tie for hole (round), inside serrated, ∅1.5-50.0mm, black, 100pcs.
Art.-No. 157-01402 | T50RTM25-PA66HS-BK |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet

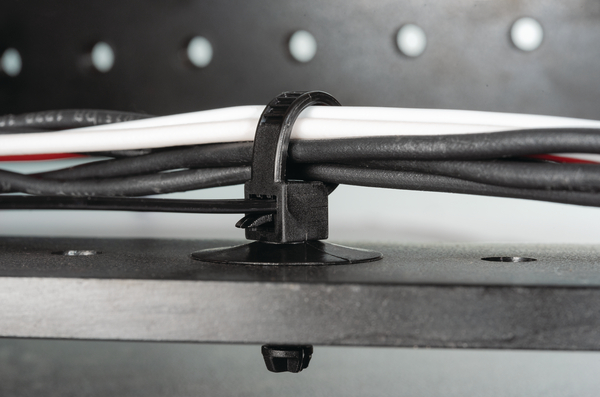

    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RTM25-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type T50RTM25
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 12.6mm
    Height (H) 1.3mm
    Length (L) 204.7mm
    Length of Fir Tree 10.6mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.32 - 7.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.0019kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 - 7.0 mm
    for Panel Thickness min - max 1.3 - 7 mm
    for Panel Thickness min - max 0.1 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026423852
    Packaging 1 - Height (m) 0.043m
    Packaging 1 - Length (m) 0.413m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0025m³
    Packaging 1 - Weight (kg) 0.190001kg
    Packaging 1 - Width (m) 0.141m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 10.27005kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 175.05kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
