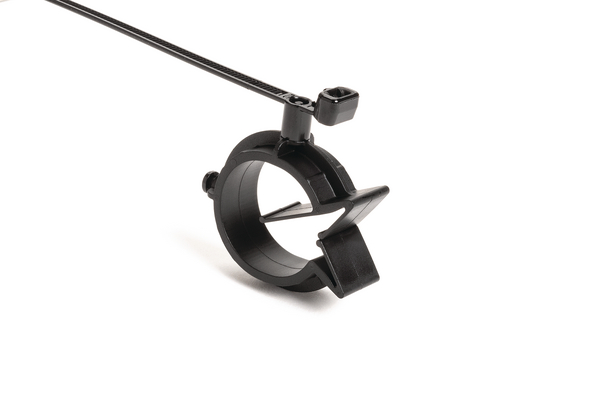

Fixing tie with pipe/tube holder, ∅2.0-50.0mm, black, 250pcs.
Art.-No. 156-02527 | T50SMVCOC25-31-PA66HIRHSUV/PA66HIRHS-BK |  Details

T50SVCOC/T50SMVCOC

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SMVCOC25-31-PA66HIRHSUV/PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Type T50SMVCOC25-31
    Attach to Diameter 0.98 - 1.22 "
    Attach to Ø 25.0 - 31.0
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 210.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin FR
    GTIN-13 / EAN 4031026765242
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 7.03kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
