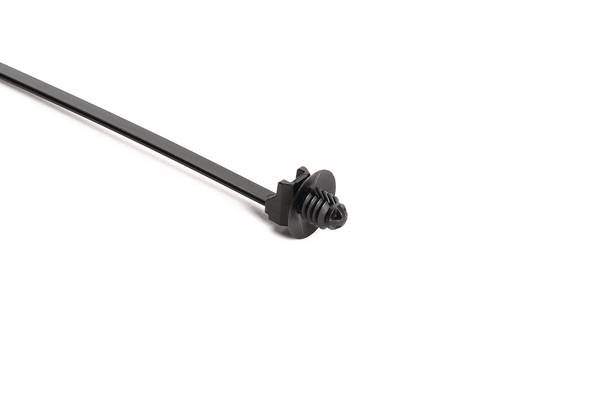

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, black, 4000pcs.
Art.-No. 157-00308 | T50SOSFT6.5-E4-PA66HS-BK |  Details

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet

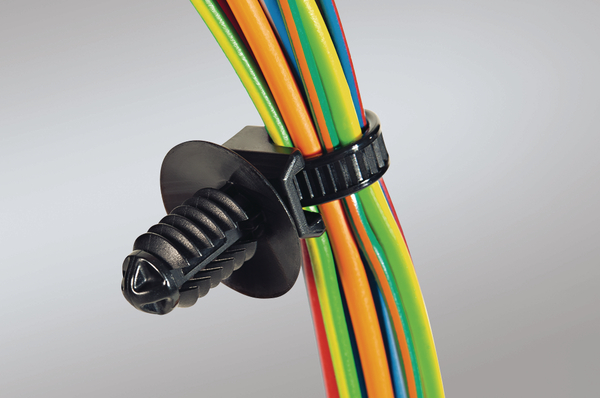

    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSFT6.5-E4-PA66HS-BK
    Pack Cont. 4000pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSFT6.5-E4
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16.0mm
    Length (L) 161.5mm
    Length of Fir Tree 7.4mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 4.2mm
    Thickness (T) 1.3mm
    Weight/Unit 0.001633kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.6 - 4.2 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026577340
    Packaging 1 - Qty 4000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 6.56533kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 7.38533kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 109.62kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
