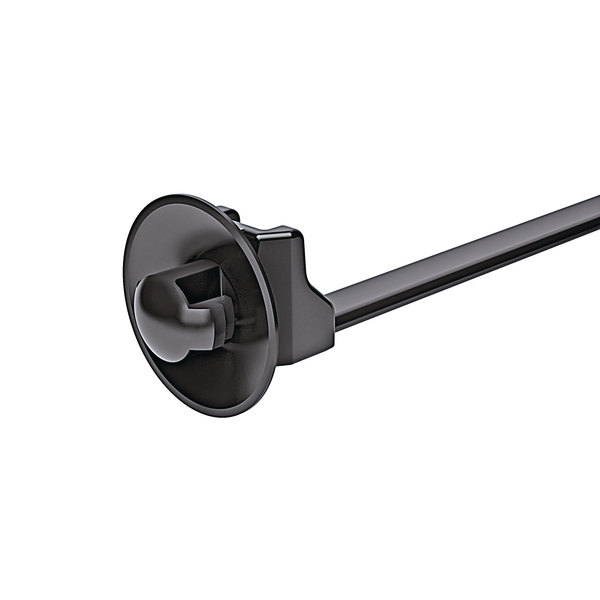

Fixing tie for hole (round), outside serrated, ∅1.5-35.0mm, black, 500pcs.
Art.-No. 126-00218 | T50SOSKSFT6.5E-PA66HS-BK |  Details

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    Show more
    Add to watchlist
    Downloads Datasheet
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Black (BK)
    Fixation Method Arrowhead (Small Mount)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSKSFT6.5E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSKSFT6.5E
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.0mm
    Length (L) 156.5mm
    Min.Tensile Strength 180N
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 1.3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026486819
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
