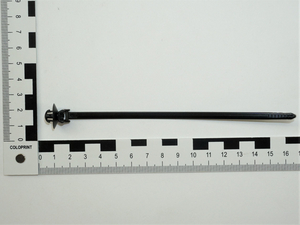

Fixing tie for hole (round), outside serrated, ∅1.5-35mm, black, 500pcs.
Art.-No. 126-00185 | T50SOSKSFT6.5PT2.4-3.0-PA66HS-BK |  Details

The disc at the head of the T50SOSSFT6.5E protects the bore against dirt and splashes.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    Show more
    Add to watchlist
    Downloads Datasheet
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSKSFT6.5PT2.4-3.0-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSKSFT6.5PT2.4-3.0
    Variant Outside Serrated
    Bundle Diameter max (metric) 35mm
    Bundle ∅ 1.5-35mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.0mm
    Hole Depth 2.4mm
    Hole Depth 3.0mm
    Length (L) 158.3mm
    Min.Tensile Strength 225N
    Weight/Unit 0.00139kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 2.4 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026462769
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01778m³
    Packaging 1 - Weight (kg) 0.724135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.06135kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 117.72kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
