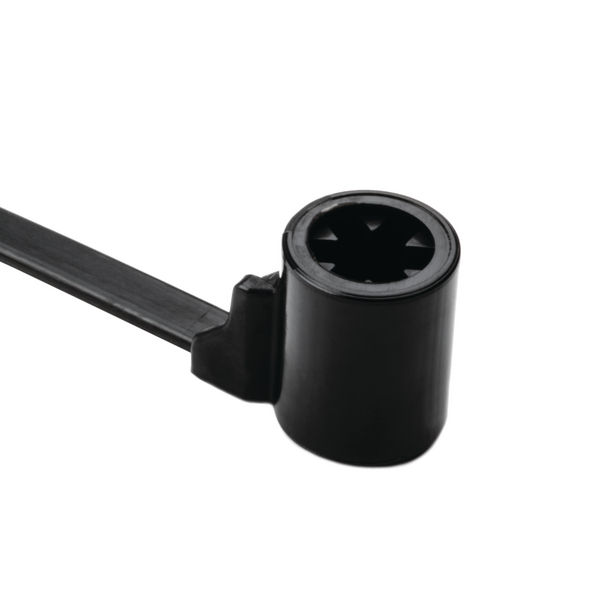

Fixing tie for stud, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 157-00210 | T50SOSSBS5E-PA66HS-BK |  Details

This outside serrated cable tie with weld stud mounting keeps the cables close to the fixing stud.

    • Cable tie head always situated in defined position
    • Easy to install without the need for a tool
    • Bundles are routed very close to stud
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSSBS5E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T50SOSSBS5E for cable routing alongside the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSSBS5E
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.35mm
    Height (H2) 15mm
    Length (L) 160.0mm
    Max Stud Length 14.0mm
    Min Stud Length 8.0mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Thickness (T) 1.35mm
    Weight/Unit 0.0004kg
    Width (W) 4.7mm
    Width (W2) 12.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026491271
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.4kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 3.22kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 85.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
