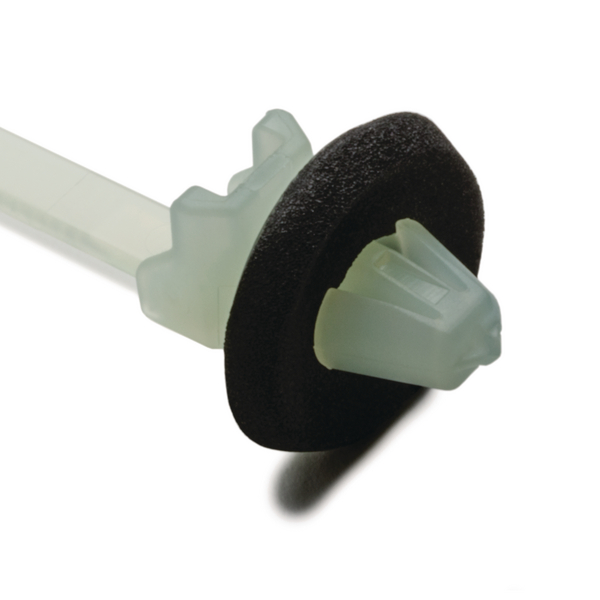

Fixing tie for hole (round)/for hole (hex), outside serrated, ∅1.5-35.0mm, natural, 4000pcs.
Art.-No. 126-00245 | T50SOSSFT6.5E-MS-MD-PA66HS-NA |  Details

Rubber seal restricts water and debris from passing through mounting hole.

    • One-piece fixing ties with cellular rubber disc
    • Especially suitable for door and tailgate harnesses used for car body applications
    • Made from PA66 heat-stabilised material
    • Cellular rubber disc minimises ingress of dust, dirt and splash water
    Package size
    Add to watchlist
    Downloads Datasheet
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSSFT6.5E-MS-MD-PA66HS-NA
    Pack Cont. 4000pcs.
    Package Content packed in carton
    Product Family for round holes, sealed
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSSFT6.5E-MS-MD
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.0mm
    Height (H) 16.0mm
    Length (L) 163.0mm
    Min.Tensile Strength 180N
    Panel Thickness max. 0.7 - 1.8mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.35 - 7.0 mm
    for Panel Thickness min - max 0.7 - 1.8 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026509785
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 7.54kg
    Packaging 3 - Width (m) 0.29209999999999997m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
