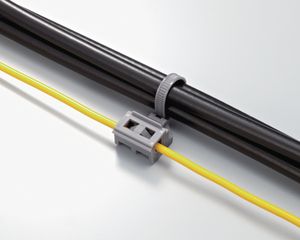

Fixing tie with pipe/tube holder, ∅1.5-30mm, black, 100pcs.
Art.-No. 148-00110 | T50SOSWA57J-PA66HSUV-BK |  Details

    • Cable tie head always in defined position
    • Easy to close by simply pressing the cover
    • Firm sit as a variation of sizes for different wires is available
    • Suitable for post-installation of bundles
    Add to watchlist
    Downloads Datasheet
    Application Cable tie head always in defined position
    Colour Black (BK)
    Identification Plate Position none
    Key product features lockable
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION T50SOSWA57J-PA66HSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Wire clip tie
    Product Group 1-piece fixing ties with wire clip
    Releasable Closure (Yes/No) No
    Type T50SOSWA57J
    Attach to Ø 5.0 - 7.0
    Bundle Diameter max (metric) 30mm
    Bundle ∅ 1.5-30mm
    Bundle ∅ min. 1.5mm
    Length (L) 150mm
    Min.Tensile Strength 225N
    Weight/Unit 0.0029kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387105490
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.290001kg
    Packaging 3 - Height (m) 0.325m
    Packaging 3 - Length (m) 0.525m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0674m³
    Packaging 3 - Weight (kg) 7.860025kg
    Packaging 3 - Width (m) 0.395m
    Packaging 4 - Height (m) 1.119m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.074m³
    Packaging 4 - Weight (kg) 115.32kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
