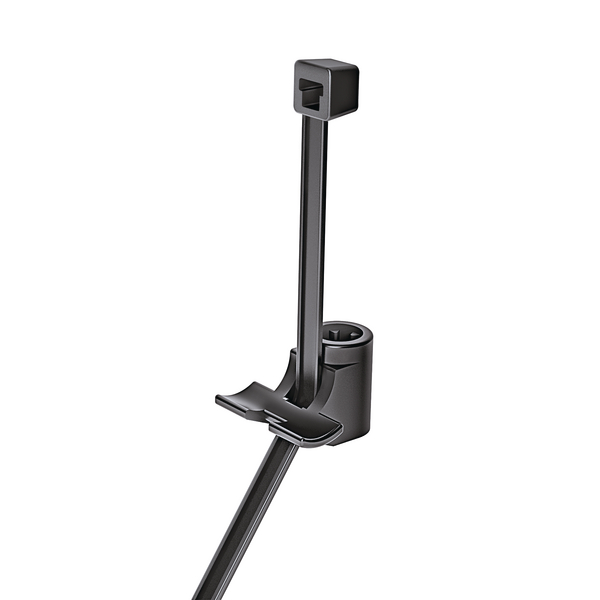

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 300pcs.
Art.-No. 150-21293 | T50SSBS5-PA66HS-BK |  Details

Cable ties with various weld stud fixing methods.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SSBS5-PA66HS-BK
    Pack Cont. 300pcs.
    Package Content packed in pcs.
    Product Group 2-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Short Description 2-Piece Fixing Tie for Weld Studs 150x4.6 black
    Tie Closure plastic pawl
    Type T50SSBS5
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 15mm
    Length (L) 150mm
    Length (L2) 20mm
    Min Stud Length 0.56"
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 0.197"
    Stud ∅ 5.0 mm
    Thickness (T) 1.2mm
    Weight/Unit 0.0014kg
    Width (W) 4.6mm
    Width (W2) 20.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5975-12-377-6862
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026119762
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 300
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.74kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 2400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 6.67kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 154.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
