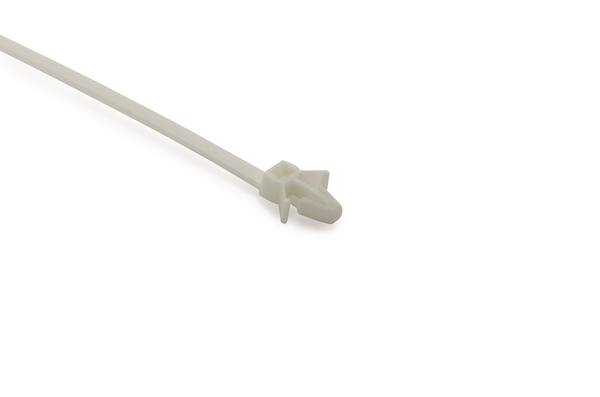

Fixing tie for hole (round), inside serrated, ∅3.2-35.0mm, natural, 500pcs.
Art.-No. 126-00082 | T50SSFM-PA66HIRHS-NA |  Details

Arrowhead disc protects against dirt and other impurities.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Add to watchlist
    Downloads Datasheet
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SSFM-PA66HIRHS-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SSFM
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 3.2-35.0mm
    Bundle ∅ min. 3.2mm
    Height (H) 5.6mm
    Length (L) 160.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 - 3.0mm
    Weight/Unit 0.001325kg
    Width (W) 4.6mm
    Width (W2) 14.7mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026418018
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00397m³
    Packaging 1 - Weight (kg) 0.662501kg
    Packaging 1 - Width (m) 0.21m
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 7.48501kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 133.275kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
