22/11/2024

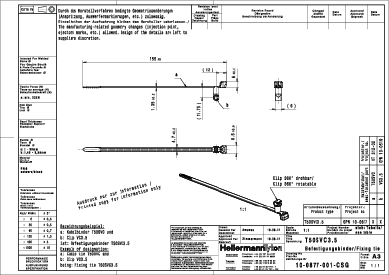

Fixing tie with pipe/tube holder, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-02534 | T50SVC3.5-PA66HIRHSUV-BK |  Details

T50SVC5 rotates in any direction.

    Add to watchlist
    Downloads Datasheet
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SVC3.5-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVC3.5
    Attach to Diameter 0.13 - 0.14 "
    Attach to Ø 3.45 - 3.55
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 222.0N
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin DE
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
