For new projects please use part number 156-03032!

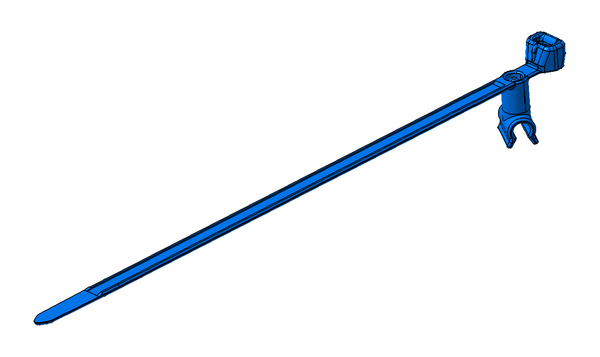

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black/natural, 500pcs.
Art.-No. 156-00318 | T50SVC4S-PA66HS/PP-BK/NA |  Details

T50SVC5 rotates in any direction.

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Inside serrated cable tie
    • Ideally used in the Automotive Industry
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application These cable ties are used to bundle and secure cables, pipes and/or hoses. They offer a fastening clip with 360° rotation, so the routed cable can move in any direction to the fastening point.
    Colour Black (BK), Natural (NA)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03032!
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polypropylene (PP)
    PART DESCRIPTION T50SVC4S-PA66HS/PP-BK/NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for multiple routing
    Product Group 2-Piece fixing ties with pipe clip, twistable 360°
    Short Description 2-Piece Fixing Ties with Pipe Clip 155x4.7 mm, twistable 360° , black/natural
    Type T50SVC4S
    Attach to Diameter 0.15"-0.17"
    Attach to Ø 3.8 - 4.2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm

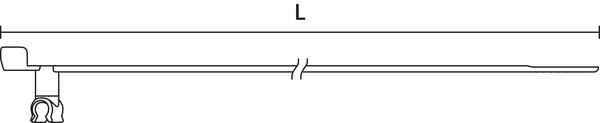

    Length (L) 155mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001394kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 3.81 - 4.32 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026285948
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 0.726135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.98589kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 84000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 152.808kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
