For new projects please use part number 156-03035!

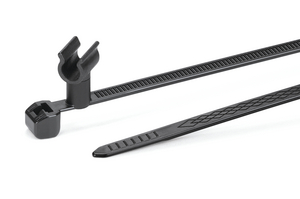

Fixing tie for cable bundles/with pipe/tube holder, inside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 155-31202 | T50SVC5-PA66HS-BK |  Details

T50SVC5 rotates in any direction.

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Inside serrated cable tie
    • Ideally used in the Automotive Industry
    Show more
    Add to watchlist
    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03035!
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SVC5-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Releasable Closure (Yes/No) No
    Short Description 2-Piece Fixing Tie with Pipe Clip twistable 360° 155x4.7 black
    Type T50SVC5
    Attach to Diameter 0.17" - 0.2"
    Attach to Ø 4.5 - 5.2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 155mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.001465kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026218168
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00496m³
    Packaging 1 - Weight (kg) 0.761635kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.00616kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 177.048kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
