23/12/2024
For new projects please use part number 156-03039!

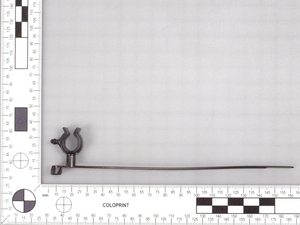

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-02403 | T50SVCOC9-11B-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03039!
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SVCOC9-11B-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.

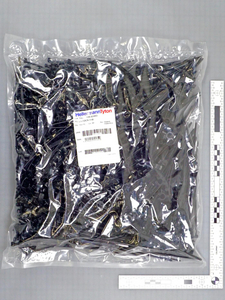

    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVCOC9-11B
    Attach to Ø 9.0 - 11.0
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 155.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.002079kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026601359
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.45m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 1.068635kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.33308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 132.984kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
