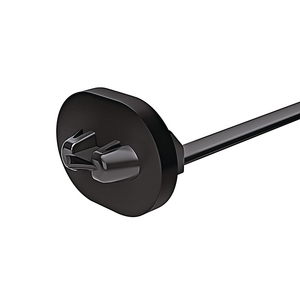

Fixing tie for hole (oval), outside serrated, ∅1.6-30.0mm, black, 500pcs.
Art.-No. 126-00197 | T60SOSSFT62X122-E-MD-PA66HS-BK |  Details

Fixing bracket for an oval hole with a seal for protection against e.g. dust and splash water.

    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts the tie for pressures from various directions
    • Cable tie head always situated in defined position
    • Cellular rubber seal minimises access of dust and dirt
    • SFT versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The parts are mainly used in the automotive industry, e.g. for door harnesses.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Key product features sealed
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T60SOSSFT62X122-E-MD-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for oval holes, sealed
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed, for Oval Holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T60SOSSFT62X122-E-MD
    Variant Outside Serrated
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.6-30.0mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 16.0 x 22.0mm
    Length (L) 157.5mm
    Min.Tensile Strength 300N
    Thickness (T) 1.35mm
    Width (W) 5.5mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 2 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026470443
    Packaging 1 - Weight (kg) 0.00205kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
