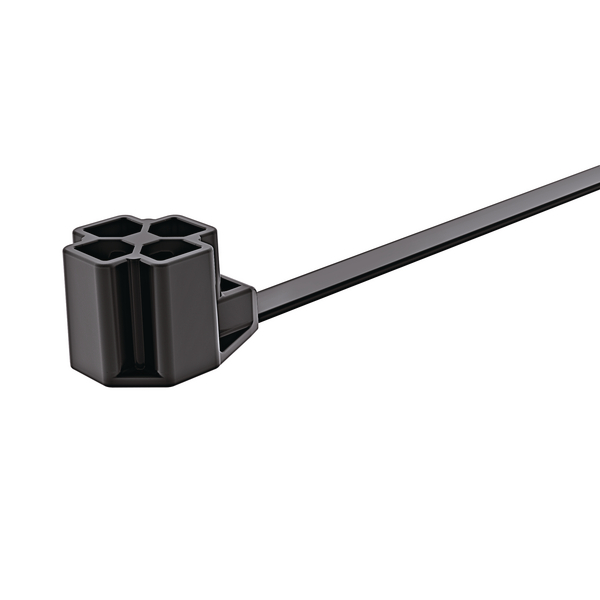

Fixing tie for stud, ∅3.5-50.0mm, black, 1500pcs.
Art.-No. 157-00290 | T80ROSSB8U-PA66HIRHSUV-BK |  Details

Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T80ROSSB8U-PA66HIRHSUV-BK
    Pack Cont. 1500pcs.
    Package Content packed in carton
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80ROSSB8U
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 3.5-50.0mm
    Bundle ∅ min. 3.5mm
    Height (H) 15.0mm
    Length (L) 212.0mm
    Min.Tensile Strength 335N
    Stud ∅ 0.31"
    Stud ∅ 8.0 mm
    Weight/Unit 0.00604kg
    Width (W) 17.75mm
    for Hole ∅ (FH) M8 x 1.25
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026577128
    Packaging 1 - Height (m) 0.889m
    Packaging 1 - Length (m) 0.635m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.21508m³
    Packaging 1 - Weight (kg) 9.060001kg
    Packaging 1 - Width (m) 0.381m
    Packaging 3 - Height (m) 0.225425m
    Packaging 3 - Length (m) 0.6096m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0545m³
    Packaging 3 - Weight (kg) 10.010001kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 22500
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 171.15kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
