22/11/2024

Cable clip for hole (round)/for stud, Dmin=18.5mm, Dmax=19.5mm
Art.-No. 151-04062 | HDC19X3BASE-PA66GF15/TPE-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HDC19X3BASE-PA66GF15/TPE-BK
    Pack Cont. 350pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HDC19X3BASE
    Bundle Diameter max (metric) 19.5mm
    Bundle ∅ 18.5-19.5mm
    Bundle ∅ min. 18.5mm

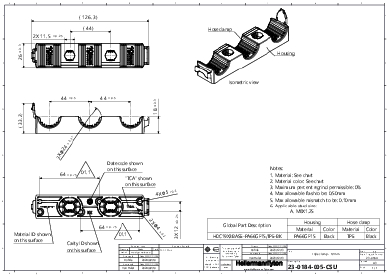

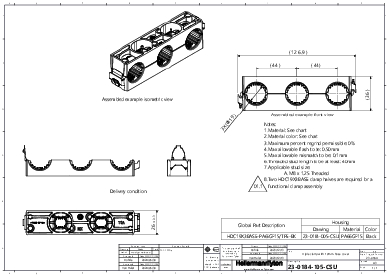

    Fixing Hole Centres (F) 1.73"
    Fixing Hole Centres (F) 44.0mm
    Height (H) 33.2mm
    Length (L) 126.3mm
    Length (L2) 44.0mm
    Width (W) 26.0mm
    ∅ max. 1. loop 19.5mm
    ∅ max. 2. loops 19.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026732701
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
