Cable clip for hole (round)/for stud, ⌀M8 x 1.25 Threaded, Dmin=21.5mm, Dmax=22.5mm
Art.-No. 151-04260 | HDC22X2BASE-PA66GF15/TPE-BK |  Details

Double clip in PA46 with anti-rotation pin recommended for corrugated tubing.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HDC22X2BASE-PA66GF15/TPE-BK
    Pack Cont. 350pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HDC22X2BASE
    ⌀ max. 1. loop 22.5mm
    ⌀ max. 2. loops 22.5mm
    Bundle ⌀ 21.5-22.5mm
    Bundle ⌀ min. 21.5mm
    Bundle Diameter max (metric) 22.5mm

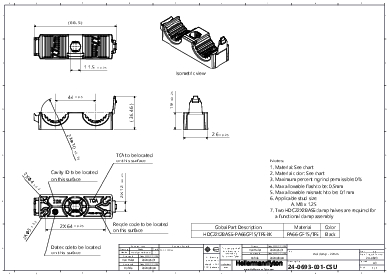

    Height (H) 38.0mm
    Height (H2) 19.0mm
    Length (L) 88.5mm
    Width (W) 26.0mm
    for Hole ⌀ (FH) M8 x 1.25 Threaded
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026745756
    Packaging 1 - Qty 350
    Packaging 1 - Type bag
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
