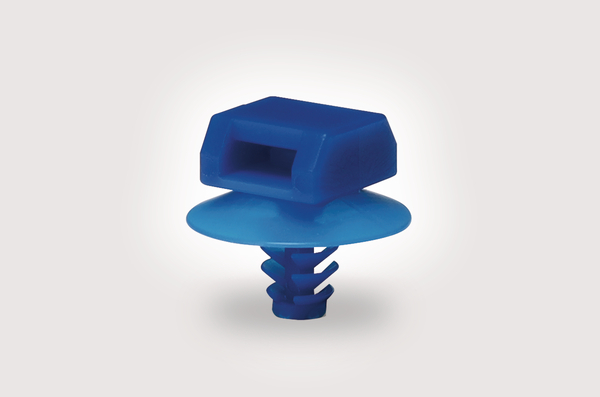

Cable tie mount for hole (round), Wmax=5.0mm, T=1.0-3.0mm, ∅3.3 - 4.0 mm, blue, 100pcs.
Art.-No. 151-01218 | FT4-E/TFE-BU |  Details

    • Supports a wide range of panel thickness in one size by the wiring fixture for the panel hole insertion which contributes to the reduction in the number of parts.
    • For the unique shape of the fir tree, it corresponds to a wide plate thickness in one size.
    • You can use both through hole, a female thread.
    Add to watchlist
    Downloads Datasheet
    Application Fixing on Panels. The dome type structure, prevent intrusion of dust, even after attaching to the panel.
    Colour Blue (BU)
    Fixation Method with Fir Tree (Mounts)
    Material Ethylene Tetrafluoroethylene (E/TFE)
    PART DESCRIPTION FT4-E/TFE-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family FT Series
    Product Group Fir tree mount
    Type FT4
    Disc ∅ 13mm
    Height (H) 11.8mm
    Length (L) 8.6mm
    Length (L2) 8.5mm
    Panel Thickness max. 1.0-3.0mm
    Strap Width max. (G) 5.0mm
    Width (W) 8.6mm
    for Hole ∅ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    Flammability UL 94 V0
    Min. Extraction Force (N) 20N
    Operating Temperature -80 °C to +170 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387107562
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
