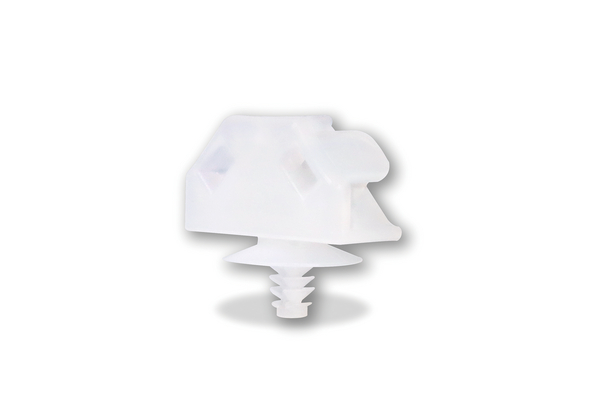

Cable tie mount for hole (round), Wmax=5mm, T=1.0-3.0mm, ∅3.3 - 4.0 mm, M4 Screw, natural, 100pcs.
Art.-No. 151-03793 | PWMFT4-PA66-NA |  Details

    • Supports a wide range of panel thickness in one size by the wiring fixture for the panel hole insertion which contributes to the reduction in the number of parts.
    • It is possible to fix two wirings in parallel.
    • For the unique shape of the fir tree, it corresponds to a wide plate thickness in one size.
    • You can use both through hole, a female thread.
    Add to watchlist
    Downloads Datasheet
    Application Fixing on Panels. The dome type structure, prevent intrusion of dust, even after attaching to the panel.
    Colour Natural (NA)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION PWMFT4-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family FT Series
    Product Group Fir tree mount
    Type PWMFT4
    Height (H) 20.1mm
    Length (L) 23mm
    Panel Thickness max. 1.0-3.0mm
    Strap Width max. (G) 5mm
    Weight/Unit 0.001563kg
    Width (W) 23mm
    for Hole ∅ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387124927
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.1563kg
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.44m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0341m³
    Packaging 3 - Weight (kg) 8.539kg
    Packaging 3 - Width (m) 0.31m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 225.936kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
