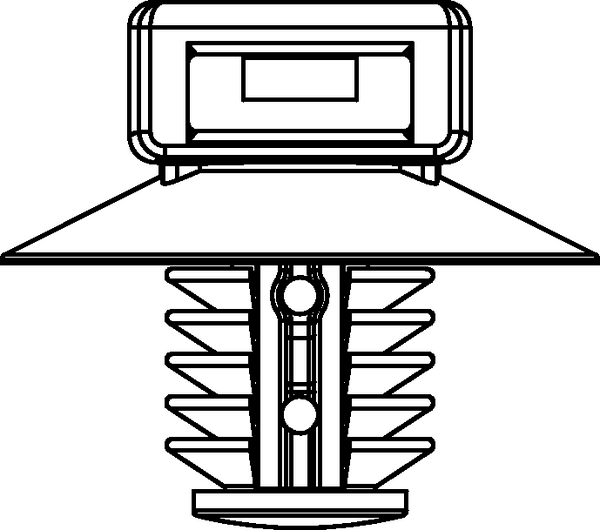

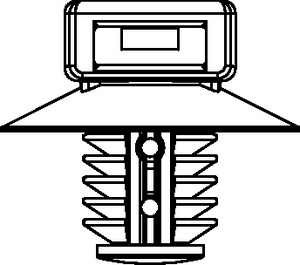

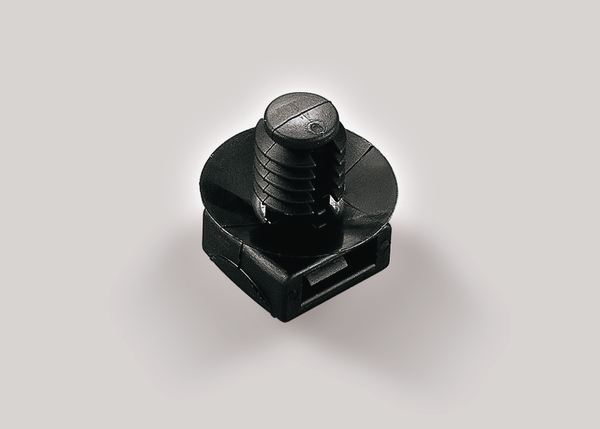

Cable tie mount for hole (round), Wmax=7.9mm, T=1.3-4.5mm, ∅8.5 - 8.9 mm, black, 100pcs.
Art.-No. 151-02658 | FT9J-PA66HSW-BK |  Details

    • Supports a wide range of panel thickness in one size by the wiring fixture for the panel hole insertion which contributes to the reduction in the number of parts.
    • For the unique shape of the fir tree, it corresponds to a wide plate thickness in one size.
    • You can use both through hole, a female thread.
    Add to watchlist
    Downloads Datasheet
    Application Fixing on Panels. The dome type structure, prevent intrusion of dust, even after attaching to the panel.
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION FT9J-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family FT Series
    Product Group Fir tree mount
    Type FT9J
    Disc ∅ 21mm
    Height (H) 18.5mm
    Length (L) 12mm
    Length (L2) 11mm
    Panel Thickness max. 1.3-4.5mm
    Strap Width max. (G) 7.9mm
    Width (W) 12mm
    for Hole ∅ (FH) 8.5 - 8.9 mm
    for Panel Thickness min - max 1.3 - 4.5 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387118810
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
