Cable grommet, ∅18.5 mm, black, 1000pcs.
Art.-No. 633-04020 | HV1402-PVC-FR-BK |  Details

Edge Protection Grommet - HV1402.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist
    Downloads Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 9.0mm
    Cable ∅ min 6.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1402-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures

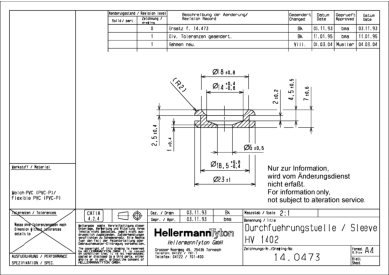

    Short Description Edge protection grommets black, outside diameter: 23.0mm, inside diameter: 6.0mm, height: 7.0mm
    Type HV1402
    Variant Round
    Diameter (D) 6.0mm
    Height (H) 7.0mm
    Height (H2) 2.0mm
    Outside Ø (OD) 23.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.001871kg
    for Hole ∅ (FH) 18.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-166-1010
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186504
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00563m³
    Packaging 1 - Weight (kg) 1.871001kg
    Packaging 1 - Width (m) 0.32m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
    Show all
    Cable grommets Cable grommets

    Cable grommets

    Wether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find now the right cable grommets for your application.
