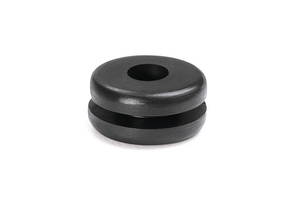

Cable grommet, ∅25.0 mm, grey, 500pcs.
Art.-No. 633-06068 | HV1606-PVC-FR-GY |  Details

Edge protection grommets.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

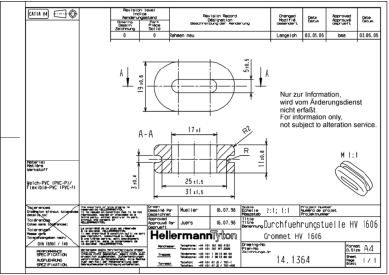

    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 20.0mm
    Cable ∅ min 17.0mm
    Colour Grey (GY)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1606-PVC-FR-GY
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Short Description Edge protection grommets grey
    Type HV1606
    Variant Oval
    Diameter (D) 17.0mm
    Height (H) 11.0mm
    Height (H2) 3.0mm
    Outside Ø (OD) 31.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.004758kg
    for Hole ∅ (FH) 25.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-387-2791
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186528
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01634m³
    Packaging 1 - Weight (kg) 2.407kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
