Cable grommet, ∅6.4 mm, natural, 2000pcs.
Art.-No. 633-55039 | OP1503-PE-NA |  Details

Edge protection grommets.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist
    Downloads Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 6.4mm
    Cable ∅ min 5.4mm
    Colour Natural (NA)
    Material Polyethylene (PE)
    PART DESCRIPTION OP1503-PE-NA
    Pack Cont. 2000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For punched or drilled metal sheets
    Short Description Edge protection grommets natural
    Type OP1503
    Variant Round

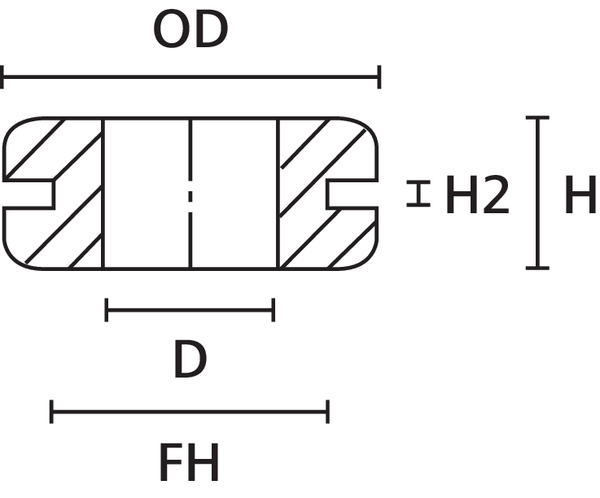

    Diameter (D) 5.4mm
    Height (H) 5.0mm
    Height (H2) 1.0mm
    Outside Ø (OD) 9.5mm
    Shore Hardness A nom. 45
    Weight/Unit 0.00012kg
    for Hole ∅ (FH) 6.4 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -10 °C to +70 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186634
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0049m³
    Packaging 1 - Weight (kg) 0.240001kg
    Packaging 1 - Width (m) 0.4m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
