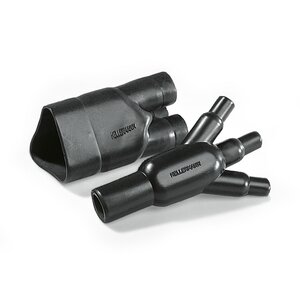

3-Way Outlet Shapes VG-Style black, PO-X
Art.-No. 403-06180 | 306-1-G-PO-X-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist
    Downloads CAD-Download
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 306-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Short Description 3-Way Outlet Shapes VG-Style black, PO-X
    Type 306-1-G
    Variant For 3-core cables
    Flexibility semi rigid
    HW ± 30 % 1.5mm
    JW ± 30 % 1.0mm
    P ± 10 % 46.0mm
    R ± 10 % 21mm
    S ± 10 % 25.0mm
    T ± 10 % 20.3mm
    W ± 20 % 1.0mm
    Weight/Unit 0.00228kg
    ∅H max. b 6.5mm
    ∅H min. a 13.0mm
    ∅J max. b 3.5mm
    ∅J min. a 6.5mm
    ∅J/K/L max. b 3.5mm
    ∅J/K/L min. a 6.5mm
    ∅K max. b 3.5mm
    ∅K min. a 6.5mm
    Designation as per VG-Norm VG 95343 T08 D 001 A
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-12-306-6020
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications VG 95343-8:2016-03
    Tensile Strength 15MPa
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660635526
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.185m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00059m³
    Packaging 1 - Weight (kg) 0.00528kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
