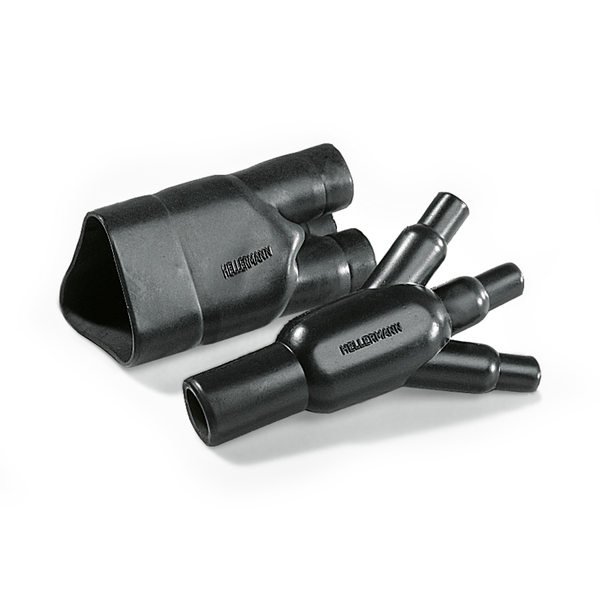

3-Way Outlet Shapes, VG style
Art.-No. 403-06043 | 306-5-L-FPMX-BK Details

  • Cable strain relief and mechanical protection at harness transition points
  • All outlets clearly marked to aid orientation during installation
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION 306-5-L-FPMX-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family Helashrink 300 Series
Product Group 3-Way Outlet Shapes, VG style
Type 306-5-L
Variant For 3-core cables
HW ± 30 % 1.5mm
JW ± 30 % 1.0mm
P ± 10 % 46mm
R ± 10 % 21mm
S ± 10 % 25mm
∅H max. b 6.5mm
∅H min. a 13mm
∅J max. b 3.5mm
∅J min. a 6.5mm
Hazardous Goods No
Nato number 5970-01-449-6103
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660694851
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
