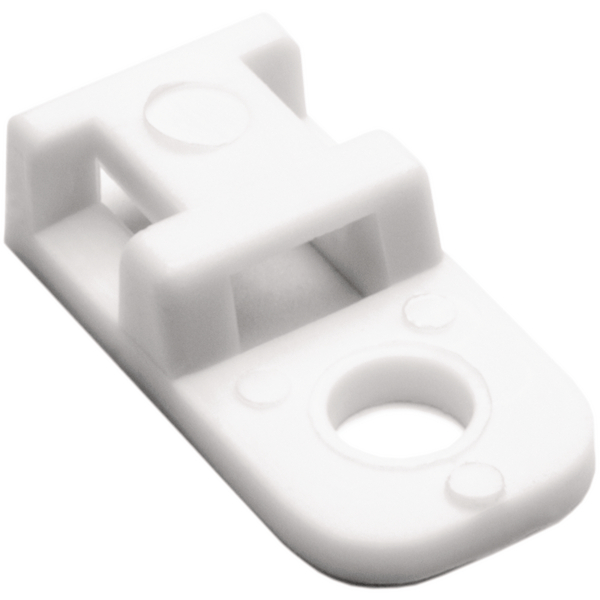

Cable tie mount for screw fixation, Wmax=5.0mm, ∅5.2 mm, #10 (M5) Screw, white, 100pcs.
Številka proizvoda 151-31203
| CTAM2-PA66-WH
|
Podrobnosti
- Suitable for applications with minimal space
- Mounted before cable installation and in line with cable
- CTAM has 4-way entry design for use in line or at 90° angle to cable run
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | Each of these products offers particular benefits, but all are designed for simple, yet robust, installation in a wide variety of applications - particularly used in telecoms equipment, switchgear and control cabinets. |
| Colour | White (WH) |
| Description | Cable Tie Mounts CTAP2 |
| Fixation Method | Screw Mount |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | #10 (M5) Screw |
| PART DESCRIPTION | CTAM2-PA66-WH |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | CTAM-Series for applications where space is limited |
| Product Group | Screw fixing mounts |
| Short Description | Screw Fixing Mount white 20.4x10.2 |
| Type | CTAM2 |
Prenos
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026430270 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.21m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00032m³ |
| Packaging 1 - Weight (kg) | 0.042901kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 7.05515kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 300000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 162.1kg |
| Packaging 4 - Width (m) | 0.8m |
