Cable tie mount for adhesive use, Wmax=5.4mm, black, 100pcs.
Številka proizvoda 151-02219
| FMB4APT-A-PA66HS-BK
|
Podrobnosti

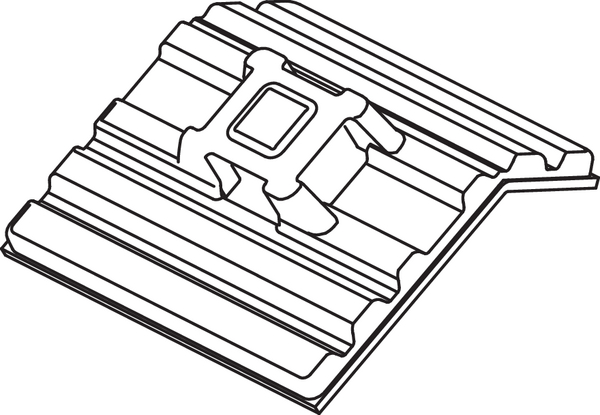

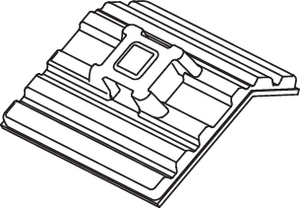

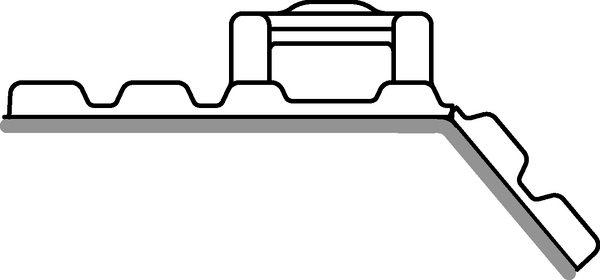

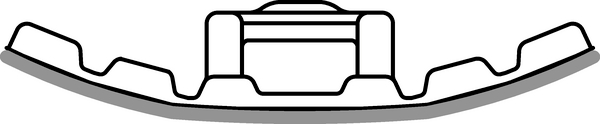

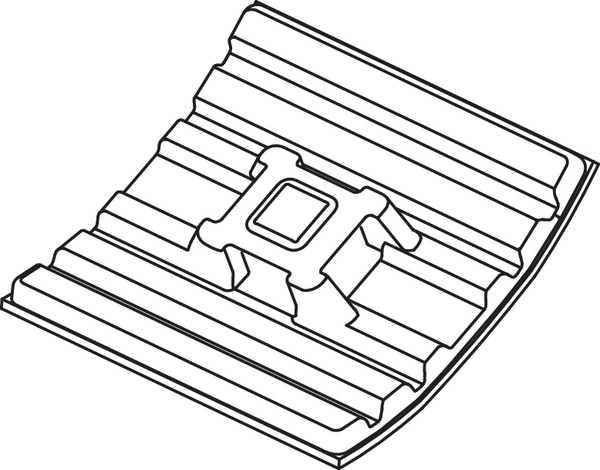

- Flexible Mount for round and angled surfaces
- FMB mounts with homogeneous system of acrylic adhesive
- Allows greater design freedom and offers uniform stress distribution along with weight reduction
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
- 4-way entry for cable tie for quicker and more flexible installation
- FlexTack Cable tie mounts are also suitable for high energy surfaces like metal or glass.
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | FlexTack cable tie mounts can be successfully applied to a variety of high- and low-energy surfaces such as glass, metals (including painted, varnished or powder-coated surfaces) as well as plastics. FlexTack provides a reliable fixing solution where it is impractical to use screws or bolts. The unique design in combination with the special acrylate adhesive makes professional cable management easy. |
| Colour | Black (BK) |
| Fixation Method | adhesive |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Maximum Static Load (lb/ft) | 1.1lbf-ft |
| PART DESCRIPTION | FMB4APT-A-PA66HS-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | FlexTack-Series FMB for round and angled surfaces |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Cable tie mount 28x28 mm, high performance adhesive, heat stabilised, black |
| Type | FMB4APT-A |
Prenos
| Adhesive | Acrylate with base of acrylic foam |
| Adhesive Operating Temperature | -40 °C to +90 °C |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +90 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026603025 |
| Packaging 1 - Height (m) | 0.028m |
| Packaging 1 - Length (m) | 0.285m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00128m³ |
| Packaging 1 - Weight (kg) | 0.19604kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.632kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 213.2kg |
| Packaging 4 - Width (m) | 0.8m |
