Cable tie mount for stud, black, 200pcs.
Številka proizvoda 156-02425
| SFSFTP Set-PA6GF30/PA66HIRHS-BK
|
Podrobnosti

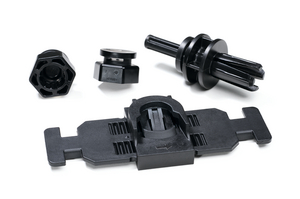

- Bundles are securely fixed with cable ties due to H-design of plate
- Plate can be fixed either with SFTP-Spacer for holes or bolt nut HDBN16 for M16 stud
- Very robust and vibration resistant fixing method for lead frames
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
Application | This SFTP-Heavy Duty fixing plate is used to run and fix cables to lead frames which can be found at railway, truck and agricultural vehicle construction. The cable harness is fixed with X120R tie onto the plate. The mounted plate can be fixed with the Rivet mount if a whole is valid at the frame. Or you can use the Bold Nut HDBN16 if a M16 stud is available. Both methods allow for a simple click and the harness is quick and vibration resistant applied to the lead frame. |
Colour | Black (BK) |
Key product features | vibration absorbing |
Material | Polyamide 6, glass-fibre reinforced (PA6GF30), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | SFSFTP Set-PA6GF30/PA66HIRHS-BK |
Pack Cont. | 200pcs. |
Package Content packed in | bag |
Product Family | SFTP-Series |
Product Group | Fastening plate and rivet mount for heavy duty applications |
Type | SFSFTP Set |
|
|
Country of Origin | DE |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026603261 |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 200 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 11.8076kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.164m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 4000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.117m³ |
Packaging 4 - Weight (kg) | 257.152kg |
Packaging 4 - Width (m) | 0.8m |
