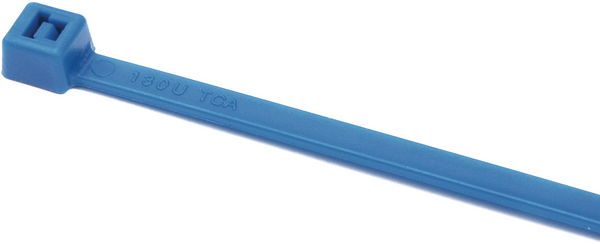

Cable tie inside serrated, 387.0x7.4mm, ∅15.0-105.0mm, blue, 50pcs.
Številka proizvoda 111-01125
| T120R-E/TFE-BU
|
Podrobnosti
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Blue (BU) |
| Identification Plate Position | none |
| Material | Ethylene Tetrafluoroethylene (E/TFE) |
| PART DESCRIPTION | T120R-E/TFE-BU |
| Pack Cont. | 50pcs. |
| Package Content packed in | bag |
| Product Family | T-Series in E/TFE |
| Product Group | Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 380x7.6 E/TFE blue |
| Tie Closure | plastic pawl |
| Type | T120R |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 105.0mm |
| Bundle ∅ | 15.0-105.0mm |
| Bundle ∅ min. | 15.0mm |
| Cable Tie Head Length (metric) | 10.5mm |
| Cable Tie Head Width (metric) | 12.65mm |
| Height (H) | 7.35mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535N |
| Strap Width max. (G) | 0.50" |
| Thickness (T) | 1.9mm |
| Weight/Unit | 0.0052kg |
| Width (W) | 7.4mm |
Prenos
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Hazardous Goods | No |
| Operating Temperature | -80 °C to +170 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | E193818 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | CN |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026316833 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.431m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00264m³ |
| Packaging 1 - Weight (kg) | 0.500001kg |
| Packaging 1 - Width (m) | 0.136m |
| Packaging 3 - Height (m) | 0.186m |
| Packaging 3 - Length (m) | 0.456m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0267m³ |
| Packaging 3 - Weight (kg) | 10.26002kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.26m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.21m³ |
| Packaging 4 - Weight (kg) | 328.8kg |
| Packaging 4 - Width (m) | 0.8m |
