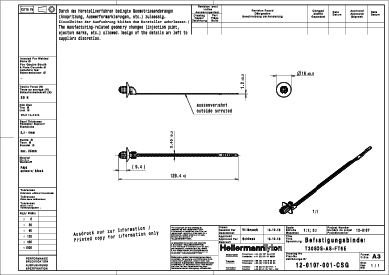

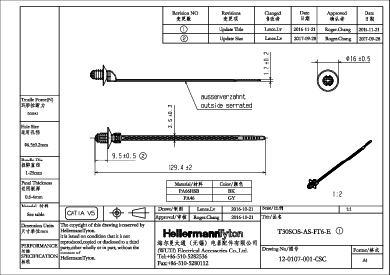

Fixing tie for hole (round), outside serrated, ∅25.0mm, black, 500pcs.
Številka proizvoda 157-00272 | T30SOS-AS-FT6E-PA66HS-BK |  Podrobnosti

1-piece fixing tie with fir tree and Anti-Slip engraving for a round hole.

    • With AntiSlip Engraving to avoid side movement of the harness
    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    prikaži več izdelkov
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30SOS-AS-FT6E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30SOS-AS-FT6E
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 25.0mm
    Disc ∅ 16.0mm
    Length (L) 129.4mm
    Min.Tensile Strength 200N
    Panel Thickness max. 0.6-4.0mm
    Width (W) 3.5mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 4 mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026568287
    Packaging 3 - Weight (kg) 4.89kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
