Fixing tie for edge, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Številka proizvoda 156-00016 | T50SOSEC20-PA66HS/PA66HIRHS-BK | Podrobnosti

Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
For minimum bundle diameters of 1 mm
For edges of 3 – 6 mm

Ne pozabite

Zahtevajte svojo individualno ponudbo zdaj

Zahtevajte ponudbo

Poiščite distributerja v svoji bližini

Downloads CAD-Download

More products in this product group:

2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method	Edge Clip
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	for narrow bundling
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50SOSEC20-PA66HS/PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 3.0 - 6.0 mm, top fixing
Product Group	2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
Releasable Closure (Yes/No)	No
Short Description	2-Piece Fixing Tie 150x4.6 for Edges 3-6 mm HS-black
Type	T50SOSEC20
Variant	Outside Serrated

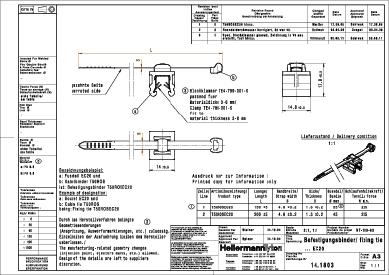

Product Dimensions

Bundle Diameter max (metric)	35.0mm
Bundle ∅	1.0-35.0mm
Bundle ∅ min.	1.0mm
Height (H)	1.3mm
Height (H2)	17.8mm
Length (L)	150.0mm
Length (L2)	14.8mm
Min.Tensile Strength	225N
Panel Thickness max.	3.0 - 6.0mm
Thickness (T)	1.3mm
Weight/Unit	0.003112kg
Width (W)	4.6mm
Width (W2)	14.0mm
for Panel Thickness min - max	3 - 6 mm
for Panel Thickness min - max	0.1 - 0.2 "

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026240787
Packaging 1 - Height (m)	0.08m
Packaging 1 - Length (m)	0.35m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00896m³
Packaging 1 - Weight (kg)	1.585135kg
Packaging 1 - Width (m)	0.32m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	13.50108kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	183.0kg
Packaging 4 - Width (m)	0.8m
