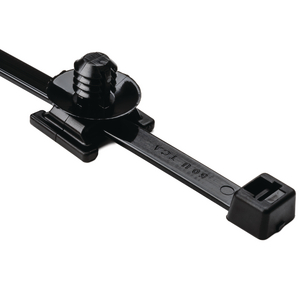

Fixing tie for hole (round), outside serrated, ∅45.0mm, black, 500pcs.
Številka proizvoda 157-00280 | T50SOSFT9E-PA66HS-BK |  Podrobnosti

Fir tree foot parts can be used for a variety of panel thicknesses.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    prikaži več izdelkov
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSFT9E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT9
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSFT9E
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 45.0mm
    Disc ∅ 16,3mm
    Length (L) 170.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001837kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 8.8 - 9.2 mm
    for Panel Thickness min - max 0.8 - 9 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026575230
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00509m³
    Packaging 1 - Weight (kg) 0.918501kg
    Packaging 1 - Width (m) 0.265m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 6.331006kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 147.62kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
