Fixing tie for hole (round), inside serrated, ∅10.0-100.0mm, black, 200pcs.
Številka proizvoda 156-01096 | X120RDHDM6-PA66HIRHS/PA66W-BK |  Podrobnosti

DHDM (Double heavy duty mount) for parallel routing of bundles.

    • Pre-assembled 2-piece fixing tie
    • Cable tie head can be moved after bundling
    • Secure alignment to the bundle due to H-design
    • A suitable alternative for metal clamps
    • Withstands vibrations and displacement forces
    • High tightening torque through metal bushing
    prikaži več izdelkov
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.
    Colour Black (BK)
    Description 2-Piece fixing tie 369*7.7 mm, pre-assembled, high impact modified, heat stabilised, black. The mount allows the parallel routing of cable ties and it is set thanks to M6 screw.
    Fixation Method Screw Mounting and Rivet
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, UV-resistant (PA66W)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION X120RDHDM6-PA66HIRHS/PA66W-BK
    Pack Cont. 200pcs.

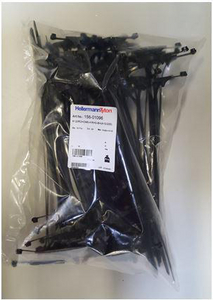

    Package Content packed in carton
    Product Family DHDM-Series for parallel routing
    Product Group 2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts
    Short Description 2-Piece Fixing Tie 369x7.7 mm, pre-assembled, high impact modified, heat stabilised, black
    Tie Closure plastic pawl
    Type X120RDHDM6
    Bundle Diameter max (metric) 100.0mm
    Bundle ∅ 10.0-100.0mm
    Bundle ∅ min. 10.0mm
    Height (H) 15.5mm
    Length (L) 369.0mm
    Length (L2) 59.4mm
    Min.Tensile Strength 535N
    Thickness (T) 1.6mm
    Weight/Unit 0.016964kg
    Width (W) 7.7mm
    Width (W2) 25.4mm
    for Hole ∅ (FH) 6.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026463414
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.26m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0104m³
    Packaging 1 - Weight (kg) 0.848201kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.6m
    Packaging 3 - Qty 200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.06m³
    Packaging 3 - Weight (kg) 4.142804kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 3200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 87.285kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
